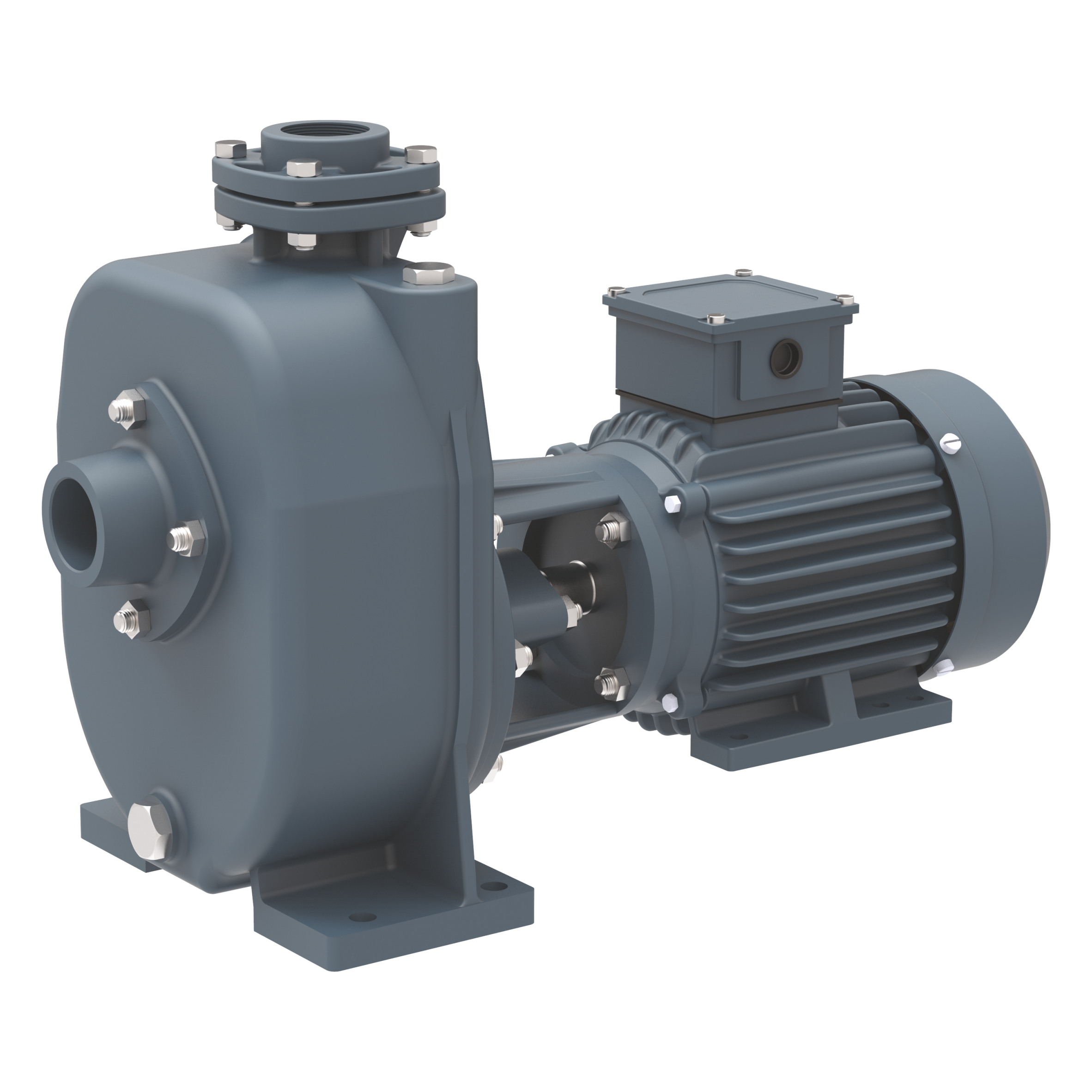

Self-priming, Solids Handling, Close Coupled Pumps (Lbm Series)
Variety & Range :
- Flow range: up to 305 mÃÂ³/h
- Head range: up to 37 metres
- Rating: 1 phase - 0.75 to 2.2 kW & 3 phase -0.75 to 18.5 kW
- Rated speed: 2900, 1450 rpm
- The pump casing shall be of Cast Iron material grade FG 260 as per IS 210 / ISO 186 and shall have axial suction and radial discharge port..
- The pumps shall have non-clogging open type impeller with material of construction of Cast Iron FG 260 (standard supply), CF8 & CF8M.
- The pump shaft sealing will be with gland packing except for pump up to 1 hp rating shall be with mechanical shaft seal.
- The Motor will be suitable for the following power supply 3 phase, 415 volts, 50 Hz & 1 phase, 240 volts, 50 Hz.
- The pump shall have back pull out design so as to enable the rotating parts to be removed and serviced without dismantling the suction and discharge pipe work.
- The pump shall be designed for muddy water or liquids or effluents with solids or fibers. The liquid shall be compatible with material of construction of the pump.
- Industries: Petrochemical, fertilizers, pharmaceutical, dyes & intermediate industries, effluent treatment plants, food processing plants, sewage plants, starch, paper, sugar plants, thermic fluid circulations, fatty acid distillation plants.
- Public utilities: For pumping muddy water, sewage and polluted liquids, dewatering of swimming pools.
- Civil engineering: Flood drainage, sewage pumping, fire fighting, dewatering of canals and ponds.
- Construction industries: Dewatering of excavation, small pits, basements, trenches, construction sites.
- Marine: Loading and unloading, dewatering of docks & vessels, bilge pumping.
- Waste treatment: Pumping polluted, hot or corrosive waste water containing sand, mud or solids, in suspension, dosing neutralizing liquid, pumping out settled sludge.
- Agriculture: Surface irrigation, liquid manure oxygenation, distribution of liquid animal feed, washing.
- Any other applications where priming is to be avoided.
